KP1500A1600V High Power Flat Type Thyristor For Medium Frequency Electric Furnace

Brand Name : OEM

Model Number : KP200A

Place of Origin : China

MOQ : 2 sets

Payment Terms : T/T

Supply Ability : 1000 sets

Delivery Time : 15 days after signing the contract

Packaging Details : Wooden box packing

model : KP1500A1600V

voltage : 1600V

current : 1500A

control method : single phase

net weight : 250g

size : max. dia73mm

Contact Now


KP1500A1600V single phase high-power flat thyristor

KP1500A1600V High Power Flat Type Thyristor For Medium Frequency Electric Furnace

characteristic:

■ Production workshop Ten thousand level dust-free workshop

■ Full crimping structure, excellent temperature characteristics and power circulation capability

■ Fully automatic vacuum silicon gel and epoxy double dispenser glue filling

■ Modules below 350A are forced air cooling, while modules above 500A can be either air cooling or water cooling

■ Chip and backplane electrical insulation AC voltage 2500VAC

■ High heat conductive packaging

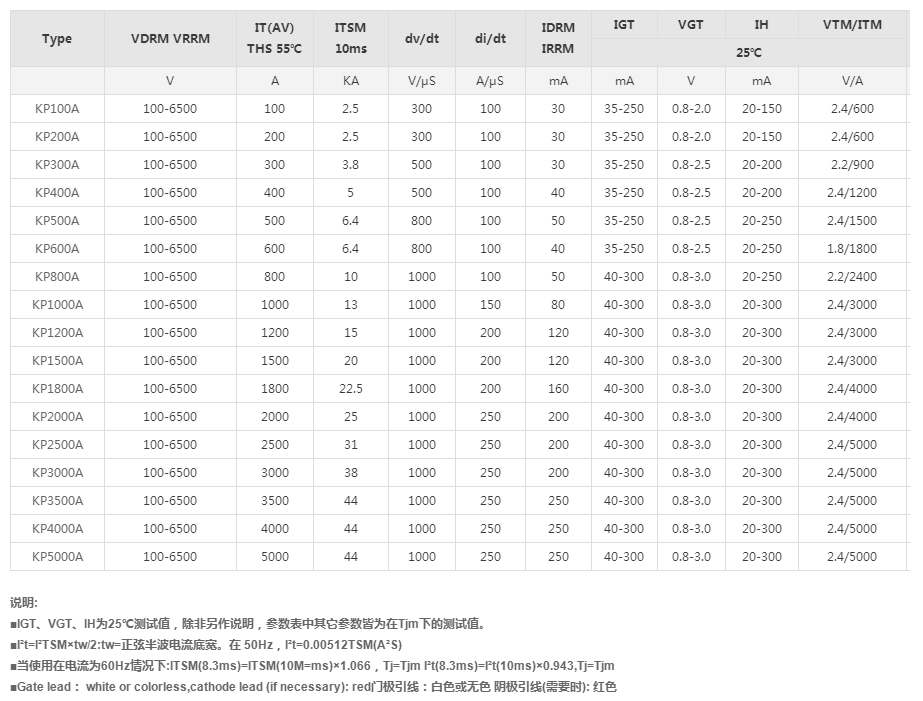

KP200A—500A flat type thyristor

Type VDRM
VRRM

IT(AV)

@80℃

VTM

@ITM

(max)

IGT

(max)

VGT

(max)

IDRM
IRRM

(max)

IH

(max)

 Tjm

ITSM

@10ms

I2t

@10ms

dv/dt

(min)

di/dt

(min)

Rthjc

(max)

 Dimension
(V) (A) (V/A) (mA) (V) (mA) (mA) ℃ (KA) (KA2S) (V/μS) (A/μS) (℃/W)
KP200-30KA2 500-1800 200 2.0 /600 200 2.2 20 20-200 125 3.8 31 200 100 0.055 KA2
KP200-30KT1 500-2500 200 2.0/600 200 2.2 20 20-200 125 3.8 31 200 100 0.055 KT1
KP200-30KT2 500-2500 200 2.0 /600 200 2.2 20 20-200 125 3.8 31 200 100 0.055 KT2
*KP200-30KT3 2600-3400 200 2.4 /600 200 2.2 20 20-200 125 3.8 31 200 100 0.055 KT3
KP300-35KA3 500-1800 300 2.0 /900 200 2.2 25 20-200 125 5 70 200 100 0.04 KA3
KP300-35KT1 500-2000 300 2.0 /900 200 2.2 25 20-200 125 5 70 200 100 0.04 KT1
KP300-35KT2 2000-2500 300 2.2 /900 200 2.2 25 20-200 125 5 70 200 100 0.04 KT2
*KP300-30KT3 2600-3400 300 2.4 /900 200 2.2 25 20-200 125 3.8 70 200 100 0.04 KT3
*KP300-38KT4 3600-4200 300 2.6 /900 200 2.2 30 20-200 125 6.4 70 200 100 0.04 KT4
KP500-40KA4 500-2200 500 2.2 /1500 220 2.2 30 20-250 125 7.6 210 500 150 0.035 KA4
KP500-40KT5 500-2200 500 2.2 /1500 220 2.2 30 20-250 125 7.6 210 500 150 0.035 KT5
KP500-45KT6 2400-3400 500 2.6 /1500 220 2.2 30 20-250 125 10 210 500 150 0.030 KT6
*KP500-50KT11 3600-6500 500 3.6 /1500 200 2.2 40 20-250 125 13 210 500 150 0.024 KT11
