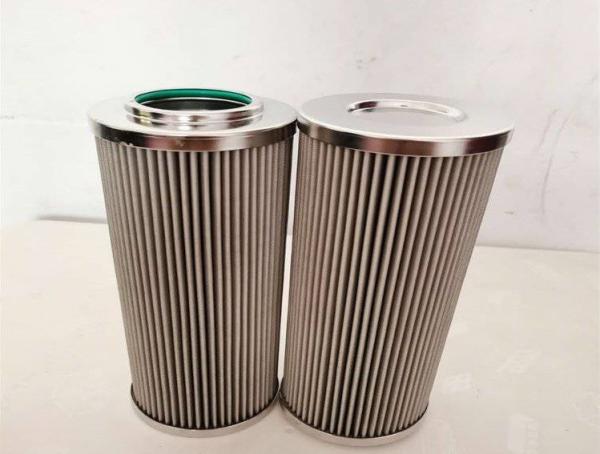

HD318S9-ZMV Hydraulic Filter Element For Transformer Oil Purification Glass Fiber Filter

Product Description:

Hydraulic oil filter element is suitable for fine filtration of hydraulic system oil, which can filter out metal particles and rubber impurities of seals caused by component wear in the system, keeping the oil flowing back to the tank clean. The filter is directly connected to the oil suction and return pipelines through threaded connections, extending into the oil in the tank. It has a simple structure and is easy to use and install. The filter element uses a new type of fiberglass filter material, which has the advantages of large oil flow capacity, high filtration accuracy, and small pressure loss.

Used in various oil systems to filter out external impurities or solid impurities generated internally during system operation, mainly installed on the oil suction circuit, pressure oil circuit, return oil pipeline, bypass, and separate filtration systems in the system. A small amount of solid particles can be removed from the liquid, which can protect the normal operation of the equipment or the cleanliness of the air. When the fluid enters the filter element with a certain specification of filter screen, its impurities are blocked, and the clean fluid flows out through the filter element.

Filtering accuracy: 20 microns

Working pressure: (MAX) 21Mpa

Working medium: general hydraulic oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc

Working temperature: -30 ℃~110 ℃

Filter material: Glass fiber filter material used

Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

Scope of use: Used for pressure oil filtration in hydraulic and lubrication systems, to filter out pollutants in the system and ensure normal operation of the system.

Features:

• Good filtration performance and uniform surface filtration performance can be achieved with a filtration particle size of 2-200um.
  2. Good corrosion resistance, heat resistance, pressure resistance, and wear resistance;
  3. Uniform and precise filtration accuracy of filter pores;
  4. The filter element is suitable for various hydraulic environments; After cleaning, it can be reused without replacement.

Technical Parameters:
